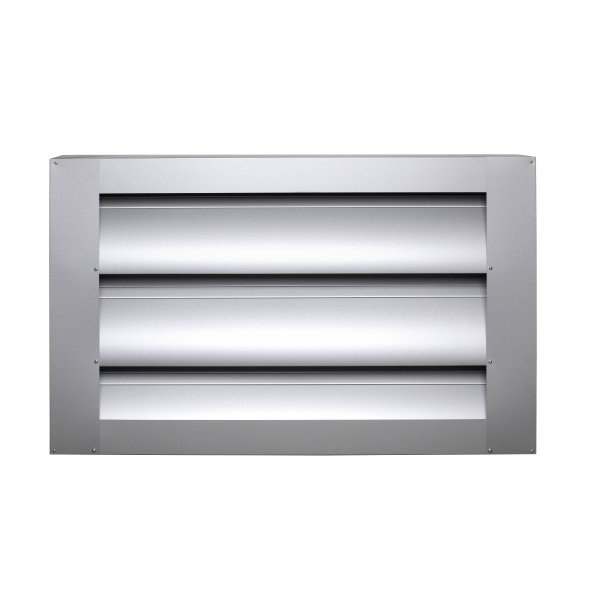

Aerofoils are extruded, aluminium profiles -lightweight and durable- and often used for architectural purposes. For example for contemporary sun louvers -also called airfoil louvres-, blinds and facades.
Specifications
| Material available | Aluminium; pre-painted steel |
|---|---|

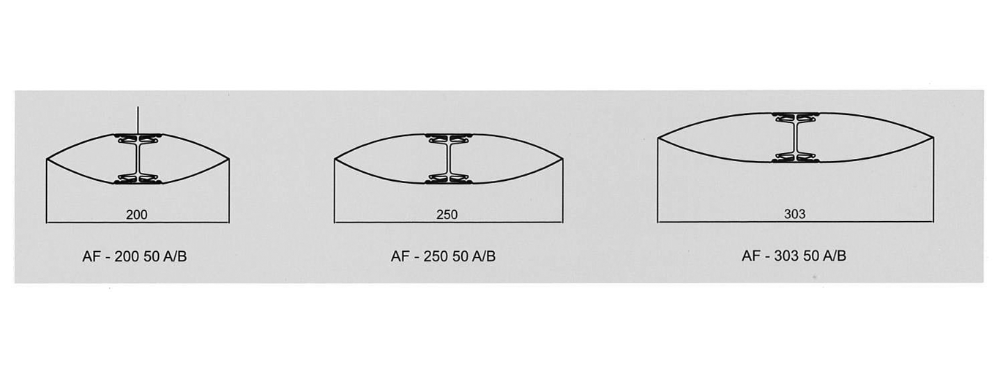

| Standard profile | AF-200 30A/B, 50A/B; AF-250 30A/B, 50A/B (other sizes can be custom made on request) |
| Material thickness | Aluminium with polyester paint finish: 0.55 mm / 0.70 mm TCT Aluminium with powder coat: 0.60 mm / 0.75 mm TCT Pre-painted steel: 0.38 mm / 0.48 mm TCT |
| Standard panel effective width & depth | AF-150 30A/B: 150 mm width × 30 mm depth |
| Accessories | BLC-30 bracket / BLC-50 bracket; BLC-U30 panel / BLC-U50 panel |
| Length | Made to order, maximum 4 m |
| Method of installation | Clip-on |
