- Box shaped profile panel & Lightweight system.
- It is durable and require minimum maintenance.
Specifications
| Material available | Aluminium (A) or pre-painted steel (B) |
|---|---|

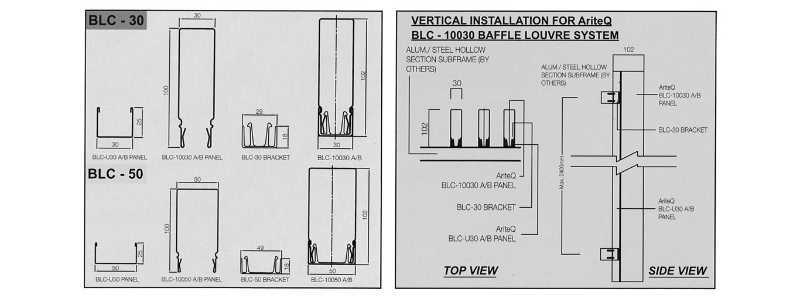

| Standard profile | BLC-100 30A/B, 100 50A/B; BLC-150 30A/B, 150 50A/B; BLC-200 30A/B, 200 50A/B (other sizes can be custom made upon request) |
| Material thickness | Aluminium with polyester paint finish 0.55 mm / 0.70 mm TCT; aluminium with powder coat 0.60 mm / 0.75 mm TCT; pre-painted steel 0.38 mm / 0.48 mm TCT |
| Standard panel effective width & depth | BLC-100 30A/B: 100 mm × 30 mm; BLC-150 30A/B: 150 mm × 30 mm; BLC-200 30A/B: 200 mm × 30 mm |
| Accessories | BLC-30 bracket, BLC-U30 panel, BLC-50 bracket, BLC-U50 panel |
| Length | Made to order, maximum length 4 m |
| Method of installation | Clip-on |
