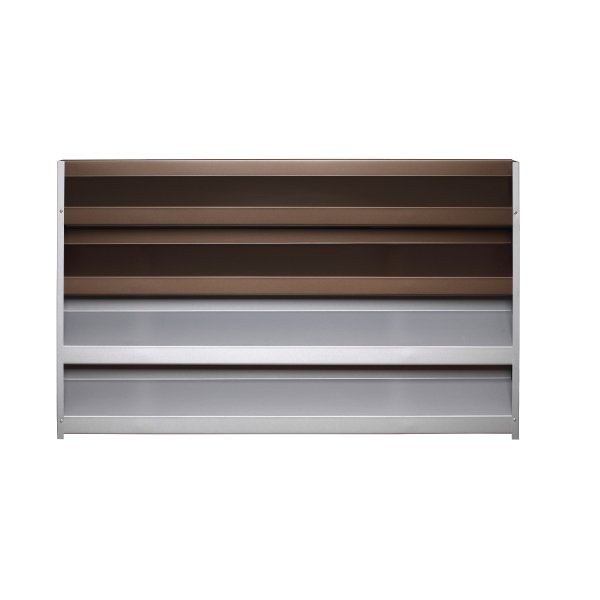

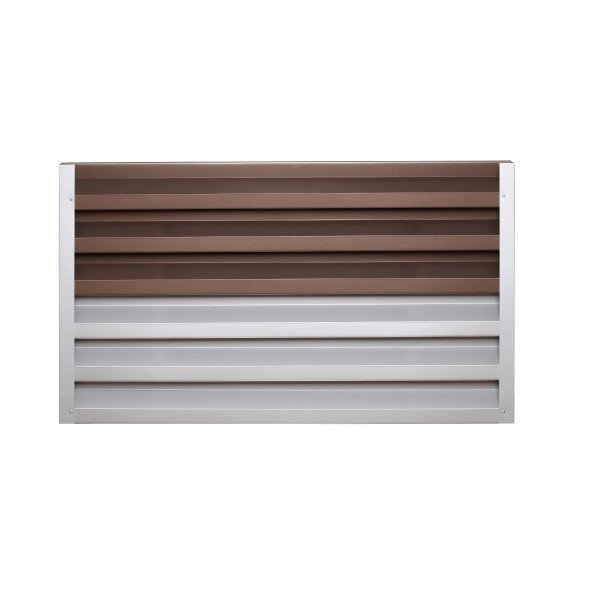

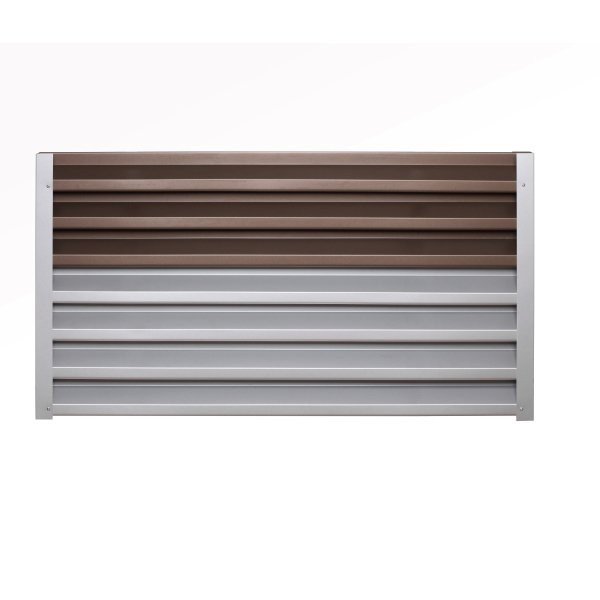

- Z-shaped profile panel, available in aluminium and prepainted steel.
Specifications
| Material available | Aluminium (A) or pre-painted steel (B) |
|---|---|

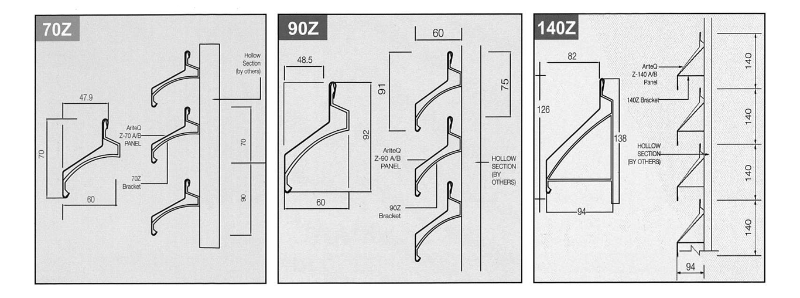

| Standard profile | Z-70A / Z-90A / Z-140A (aluminium); Z-70B / Z-90B / Z-140B (pre-painted steel) |
| Material thickness | Aluminium with polyester paint finish 0.55 mm / 0.60 mm / 0.70 mm TCT; pre-painted steel 0.38 mm / 0.40 mm TCT |
| Standard panel effective width & depth | Z-70 A/B: 70 mm × 60 mm; Z-90 A/B: 91 mm × 60 mm; Z-140 A/B: 138 mm × 94 mm |
| Accessories | 90Z bracket, 70Z bracket, 140Z bracket |
| Length | Made to order, maximum length 4 m |
| Method of installation | Clip-on |
