- AriteQ™ Baffle Ceiling System offers a spatial pattern with a linear open ceiling that facilitates better air circulation.
- They are simple to install while offering easy access to the ceiling plenum for maintenance and the installation of additional lighting, sprinklers, or sound system.
- This system not only inspires a modern, architectural atmosphere, but also delivers superior durability, comfort and creates an aesthetically pleasing environment to your space.
- AriteQ™ Sunshade Baffle Louvres System comes in 2 categories – Clip-on and Screen-on, which are both easy to work with.
- This system uses aluminium or prepainted steel panels that snap into vertically mounted frames.
Specifications
| Material available | Aluminium with polyester paint finish (A) or pre-painted steel (B) |
|---|---|
| Standard profile | BLC-100 30A/B, 100 50A/B; BLC-150 30A/B, 150 50A/B; BLC-200 30A/B, 200 50A/B |
| Material thickness | Aluminium with polyester paint finish 0.55 mm / 0.70 mm TCT; aluminium with powder coat 0.60 mm / 0.75 mm TCT; pre-painted galvanized steel (PPGI) 0.38 mm / 0.48 mm TCT |
| Standard panel effective width & depth | BLC-100 30A/B: 100 mm × 30 mm; BLC-150 30A/B: 150 mm × 30 mm; BLC-200 30A/B: 200 mm × 30 mm |

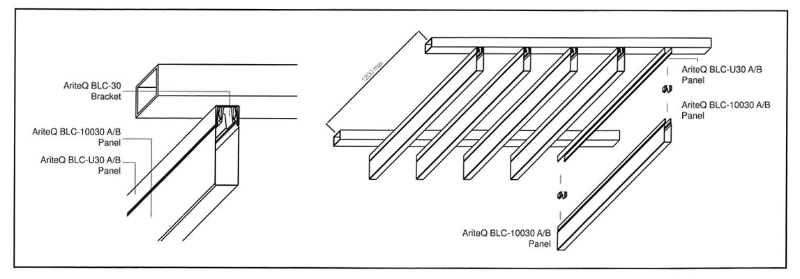

| Accessories | BLC-30 bracket, BLC-U30 panel, BLC-50 bracket, BLC-U50 panel |
| Length | Made to order, maximum length 4 m |
| Method of installation | Clip-on |
