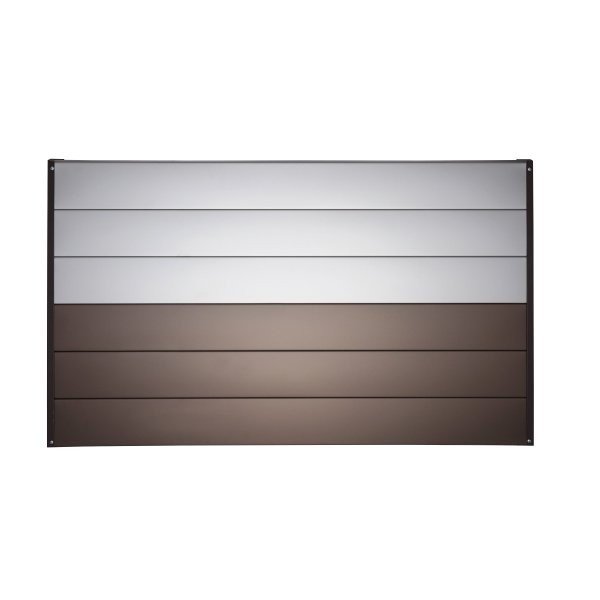

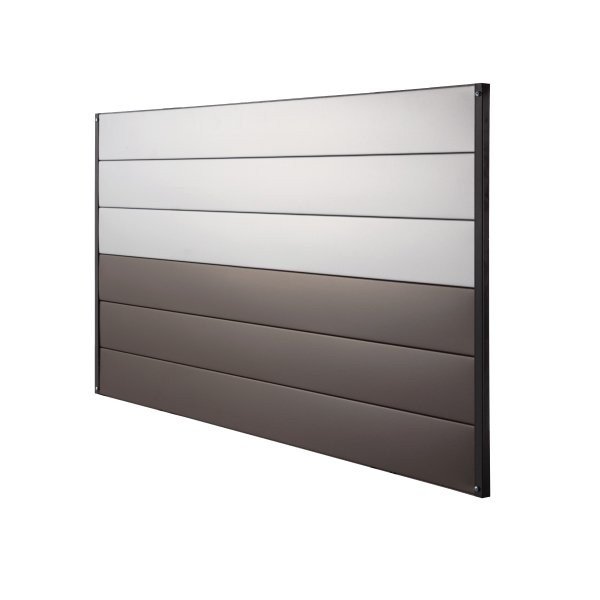

- AriteQ Strip Ceiling-OM5 is roll formed from colours coated aluminium coils or steel.
- This profile with square edge and narrow gap is special designed for petrol kioks and showrooms for easy maintenance.
Specifications
| Profile and material available | OM5A – aluminium with polyester paint finish; OM5B – pre-painted steel |
|---|---|
| Material thickness | Aluminium with polyester paint finish 0.55 mm / 0.70 mm TCT; pre-painted galvanized steel (PPGI) 0.38 mm / 0.48 mm TCT |

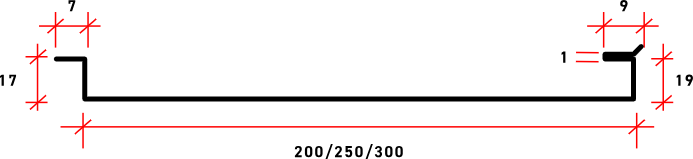

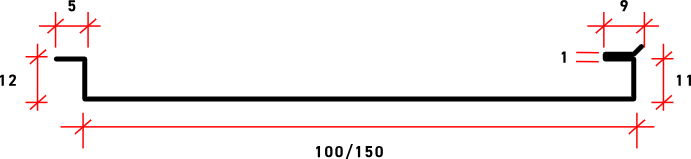

| Panel effective width & depth | OM5 A/B 100: 100 mm width × 12 mm depth; OM5 A/B 150: 150 mm × 12 mm; OM5 A/B 200: 200 mm × 19 mm; OM5 A/B 250: 250 mm × 19 mm; OM5 A/B 300: 300 mm × 19 mm |
| Carrier | MB 5 |
| Length | Made to order, minimum length 2 m; recommended optimum length 6 m |
| Method of installation | Clip-on |
