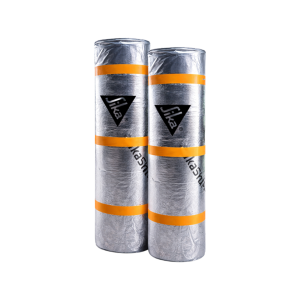

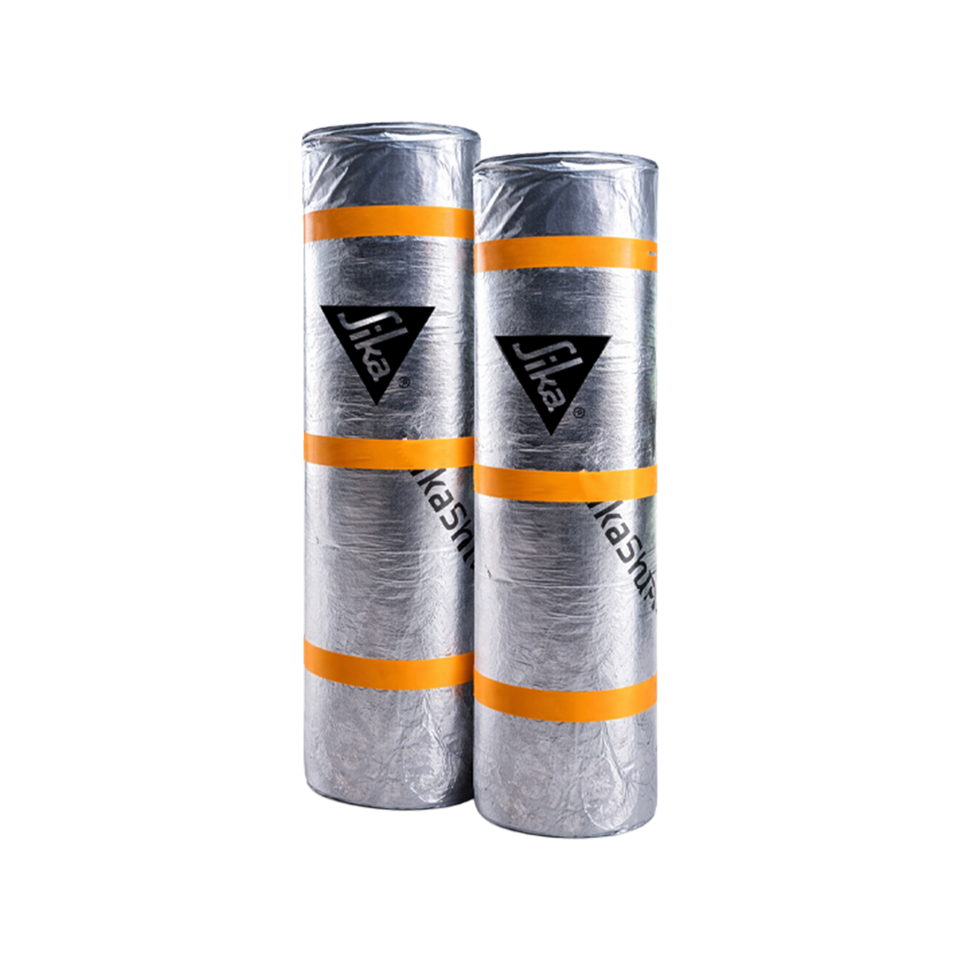

SikaShield W159 ED 1.5 mm bitumen waterproofing membrane

A 1.5 mm bitumen waterproofing membrane that is stuck to concrete with the cement adhesive SikaShield W1 (wet application). It is reinforced with a cross-laminated PE film, stays flexible at -15 °C and has a removable liner on both faces. Use it for basements and other below-ground structures, vertical reinforced-concrete walls and single or strip foundations, as a single layer under heavy protection or as a base sheet in multi-layer systems. No torch is needed, so it is safe in confined spaces, and it can go on wet concrete. Not for roofs permanently exposed to UV.

Key specs

• Roll: 1.0 m wide × 20 m long; thickness 1.5 mm ± 0.15 mm
• Polymer-modified bitumen with cross-laminated PE reinforcement
• Tensile strength about 3 N/mm²; elongation about 300 %
• Static puncture resistance about 240 N; tear resistance about 30 N
• Resists lateral water migration up to about 70 m head
• Unaffected by folding at -25 °C
• Store rolls upright, dry, +5 °C to +35 °C; shelf life 12 months
