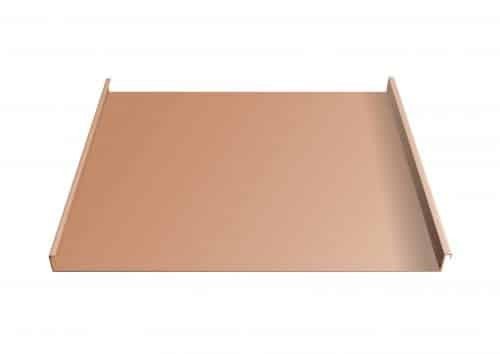

LYSAGHT® contemporary concealed-fix standing seam profile complements virtually any architectural design for the modern home. Broad, flat pans and slender, well-defined ribs, with ability to be curved and tapered and mechanically seamed on site, this is the ultimate profile for the style, versatility and performance.
Specifications
| Nominal cover width | 495 mm or 521 mm |
|---|---|
| Rib height | 38 mm (for 495) or 25 mm (for 521) |
| Minimum roof slope | 3° |
| Base steel | BlueScope COLORBOND® Steel and ZINCALUME® Steel |
| Coating mass | AZ150, AZ200 |
| Thickness (BMT) | 0.55 mm |
| Steel grade | G300 |
