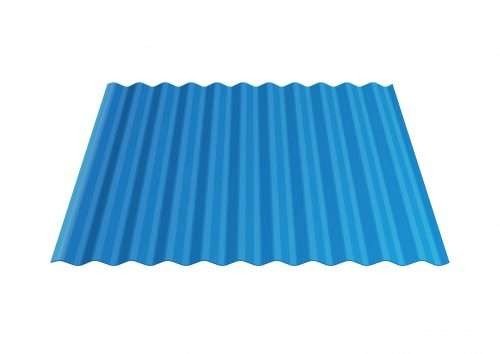

LYSAGHT Custom Orb and Custom Blue Orb corrugated roof and wall sheet

lysaght-custom-orb

The original corrugated roof and wall cladding profile from Australia. Lightweight yet strong, CUSTOM ORB® is equally suitable for traditional and modern architectural design in residential, commercial and rural applications. CUSTOM BLUE ORB® uses more ductile steel suitable for bullnosing or curving into a range of concave and convex shapes.

Specifications

Nominal cover width 762 mm
Rib height 16 mm
Minimum roof slope 5°
Base steel BlueScope COLORBOND® Steel and ZINCALUME® Steel
Coating mass AZ150
Thickness (BMT) Custom Orb®: 0.42 mm and 0.48 mm; Custom Blue Orb®: 0.60 mm and 0.80 mm
Steel grade G550 (Custom Orb®); G300 (Custom Blue Orb®)
Manufacturer: Lysaght show products
SKU: LYSA0013
