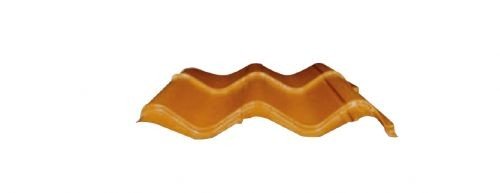

LYSAGHT® BORNEO TILE® looks as elegant as terracotta roof tiles. Combining elements of style, quality and efficiency, this inter-locking concealed-fix steel roof tile is a result of years of research and development.
While resembling the aesthetic appearance of terracotta roof tiles, LYSAGHT® BORNEO TILE® is significantly lighter at one-tenth the weight of clay and concrete roof tiles. The lighter roof weight transforms into savings on roof structures as compared to conventional clay and concrete roof tiles.
Specifications
| Nominal cover width | 762 mm |
|---|---|
| Rib height | 16 mm |
| Step height | 16 mm |
| Module length | 380 mm |
| Minimum roof slope | 18° |
| Base steel | BlueScope COLORBOND® Steel |
| Coating mass | AZ150 |
| Thickness (BMT) | 0.42 mm |
| Steel grade | G300 |
| Availability | Sabah only |
