- Roll – forming long length high tensile metal decking.
- Manufactured from high tensile steel substrate protected with corrosion inhibitive treatment.
- Roofing and walling profiles with material warranty up to 25 years. (Warranty terms & conditions apply)

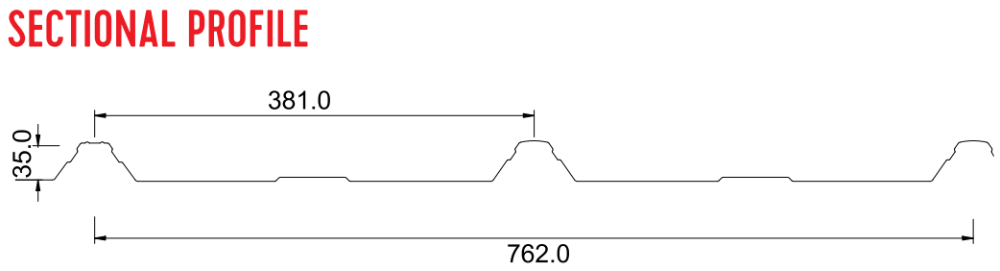

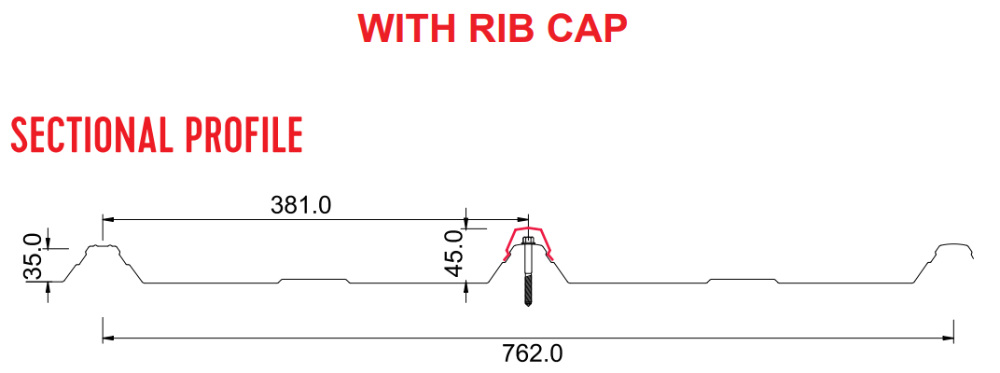

- With effective cover width of 762mm and rib height of 35mm & 45mm
- Recommended minimum roof pitch is 2°.
- Innovative, durable and cost effective.
- Widely used for commercial and industrial projects such as factories, condominium, cabin, hoarding, and etc.
Specifications
| Profile | Concealed rib roofing and walling sheet |
|---|---|
| Substrate | High tensile steel with corrosion inhibitive treatment |
| Effective cover | 762 mm |
| Rib height | 35 mm ± 1 mm or 45 mm ± 1 mm |
| Minimum roof pitch | 2° |
| Tolerance | Material thickness ±0.03 mm; effective width ±5 mm; finishing length ±5 mm |
| Material warranty | Up to 25 years (terms & conditions apply) |
