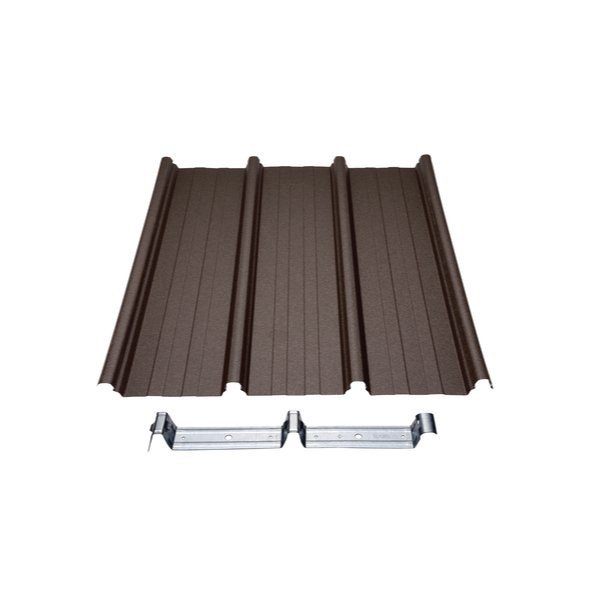

- Roll – forming long length high tensile metal decking.
- Combines with smart fluted spans and a lock-action rib design.
- Protected with corrosion inhibitive treatment.
- Roofing and walling profiles with material warranty up to 30 years. (Warranty terms & conditions apply)
- Can be custom made lengths with option for on-site roll- forming.
- Concealed fixing method with clip and locking system.
Installation method

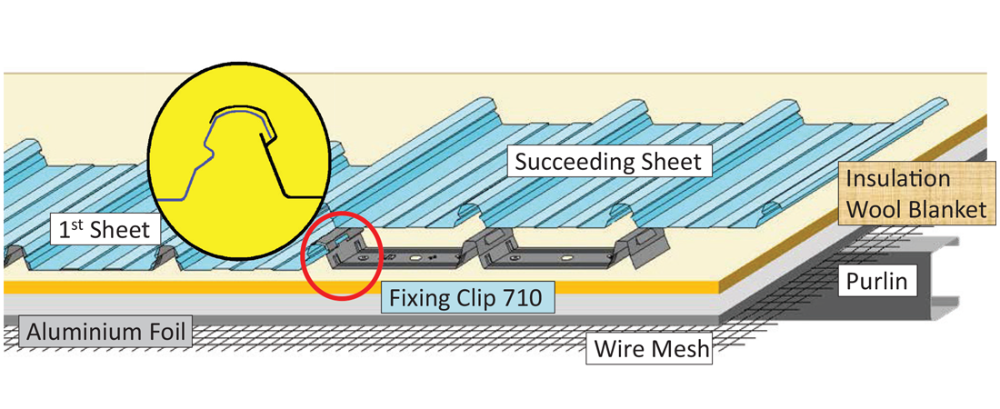

The 1st sheet is positioned and then pressed over the fixing clip which must be accurately aligned and fixed to ensure positive engagement between the roof sheet and the fixing clips. A ‘click’ indicate a positive lock. The second and subsequent sheets are laid each time after a new set of fixing clips have been placed firmly over the male rib of the preceding sheets.
Specifications
| Fixing | Concealed fixing with clip and locking system |
|---|---|

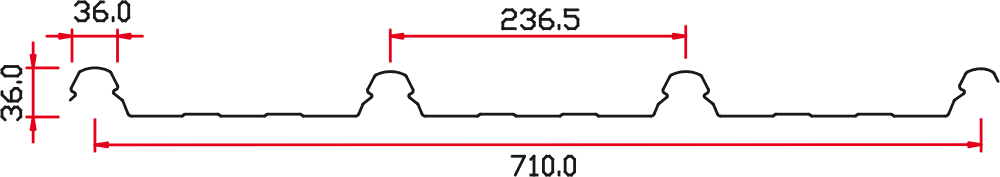

| Rib height | 36 mm ± 1 mm |
| Effective cover | 710 mm |
| Minimum roof pitch | 1° |
| Tolerance | Material thickness ±0.03 mm; effective width ±5 mm; finishing length ±5 mm |
| Material warranty | Up to 30 years (terms & conditions apply) |
