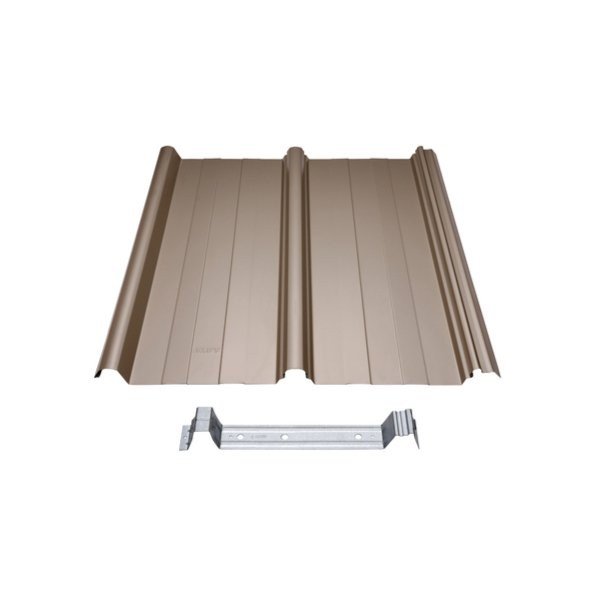

- Concealed fixing method with clip and locking system.
- Combined with smart fluted spans and a lock-action rib design.
- Roofing and walling profiles with material warranty up to 30 years. (Warranty terms & conditions apply)
- Can be custom made lengths with option for on-site roll- forming.
- A patented product of AJIYA.
Installation method

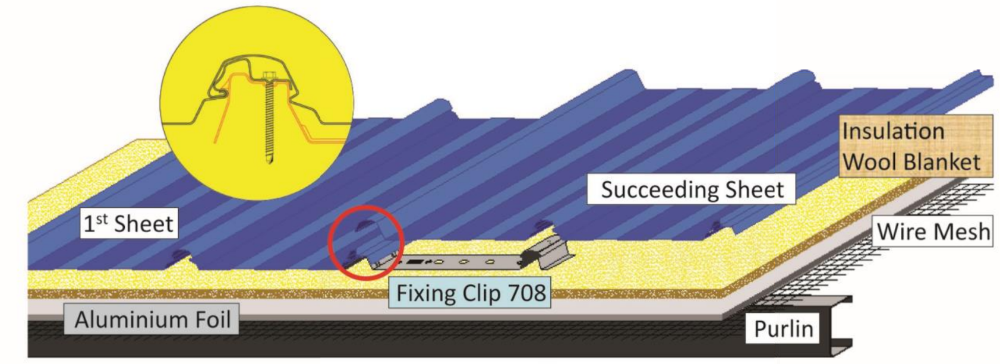

The 1st sheet can be positioned accurately with the help of alignment reference by fixing Clip 708 itself. A ‘click’ sound indicates the positive engagement between the roof sheet and the fixing clips. A self-drilling steel screw is needed to use on Conceal Locking System (CLS) between the female-rib and fixing clips. Each time after a new set of fixing clips which placed firmly, the succeeding sheet laid.
Specifications
| Fixing | Concealed fixing with clip and locking system |
|---|---|

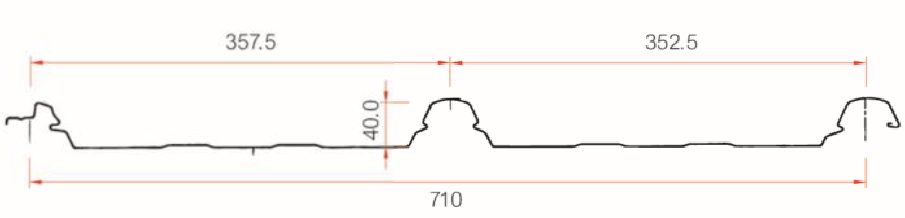

| Rib height | 40 mm ± 1 mm |
| Effective cover | 710 mm |
| Minimum roof pitch | 1° |
| Tolerance | Material thickness ±0.03 mm; effective width ±5 mm; finishing length ±5 mm |
| Material warranty | Up to 30 years (terms & conditions apply) |
