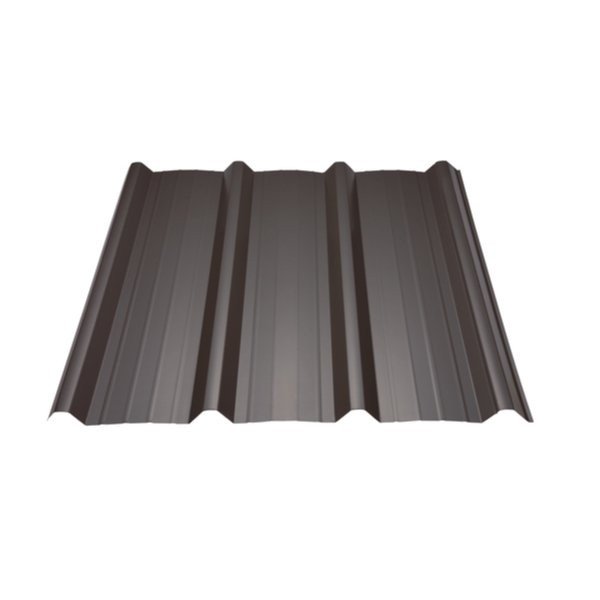

- Roll – forming long length high tensile metal decking with three fluted pans.
- Roofing and walling profiles with material warranty up to 30 years. (Warranty terms & conditions apply)
- Can be custom made lengths with option for on-site roll- forming.
- High rib to ensure good spanning capability and excellent water-discharge capacity.
Product features
Custom made lengths with options for on-site rolling. Long spanning capacity. Available in various thicknesses steel roofing & colours. Good rain water flow capacity.
Specifications

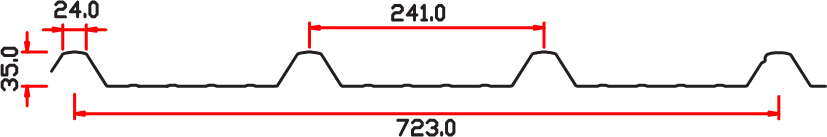

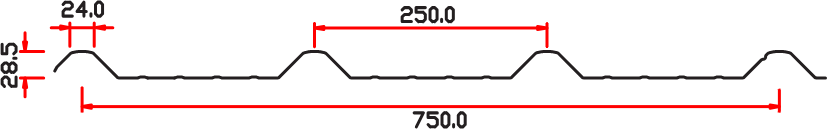

| Rib height | Mega Rib 30: 28.5 mm ± 1 mm; Mega Rib 35: 35 mm ± 1 mm |
|---|---|
| Effective cover | Mega Rib 30: 750 mm; Mega Rib 35: 723 mm |
| Minimum roof pitch | 2° |
| Curvature | Natural curve: >20,000 mm radius; crimp curve: >600 mm radius |
| Tolerance | Material thickness ±0.03 mm; effective width ±5 mm; finishing length ±5 mm |
| Material warranty | Up to 30 years (terms & conditions apply) |
