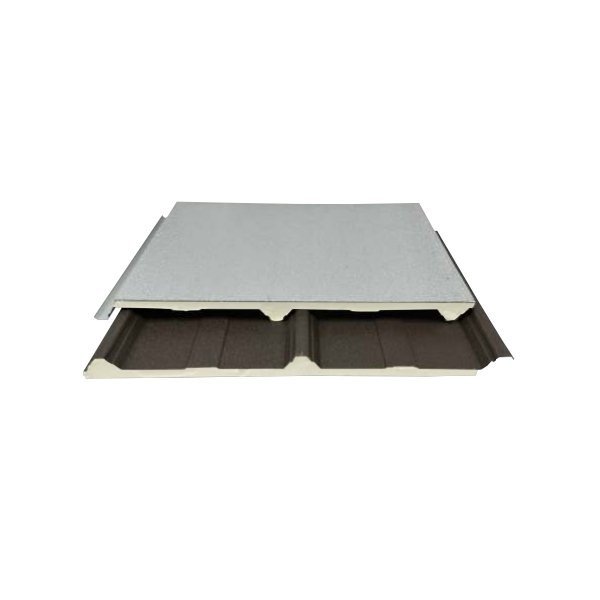

- Made up of prepainted steel, rigid Polyurethane (PU) and the PVC lamination or Metal liner .
- Can be custom made lengths with option for on-site roll- forming.
- Better internal noise control
- Provides better thermal comfort
- Reduces CO2 emissions.

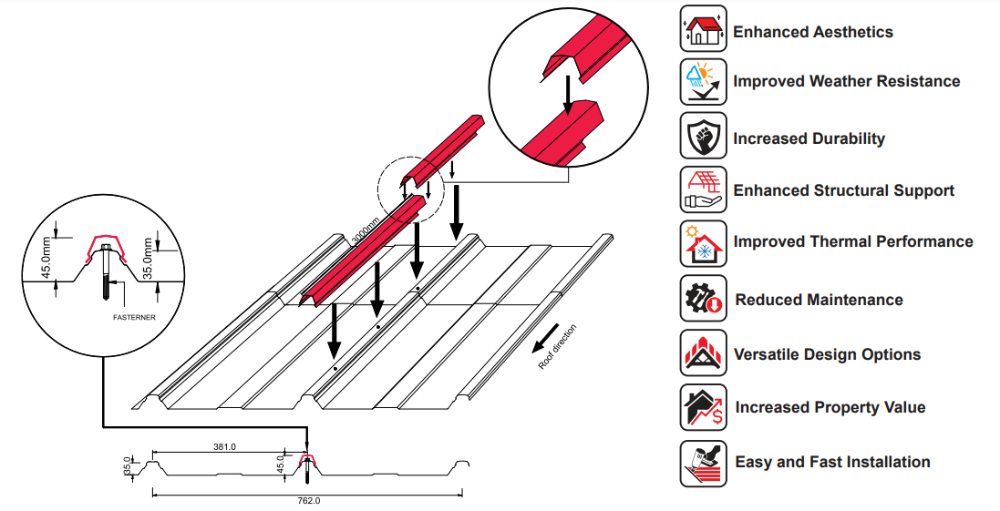

- With effective cover width of 762mm and rib height of 35mm & 45mm
- Recommended minimum roof pitch is 2°.
- Innovative, durable and cost effective.
- Widely used for commercial and industrial projects such as factories, condominium, cabin, hoarding, and etc.
Specifications

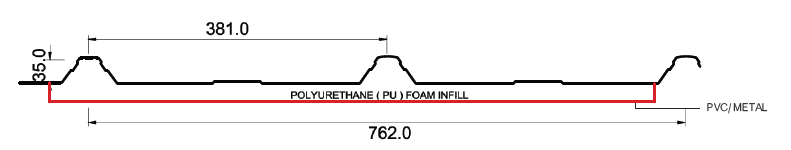

| Construction | Prepainted steel, rigid polyurethane (PU) core and PVC lamination or metal liner |
|---|---|

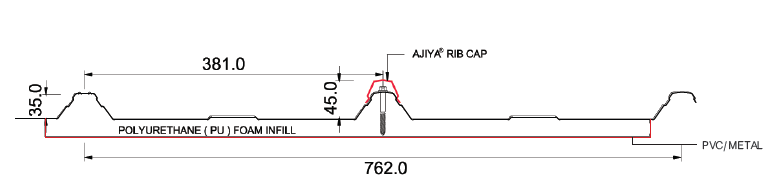

| Rib height | 35 mm ± 1 mm or 45 mm ± 1 mm |
| Effective cover | 762 mm |
| Minimum roof pitch | 2° |
| Tolerance | Material thickness ±0.03 mm; effective width ±5 mm; finishing length ±5 mm |
