- Cladding profile with material warranty up to 30 years. (Warranty terms & conditions apply)
- Can be custom made lengths with option for on-site roll- forming.
- It can be used vertically and horizontally to allow creative and flexible.

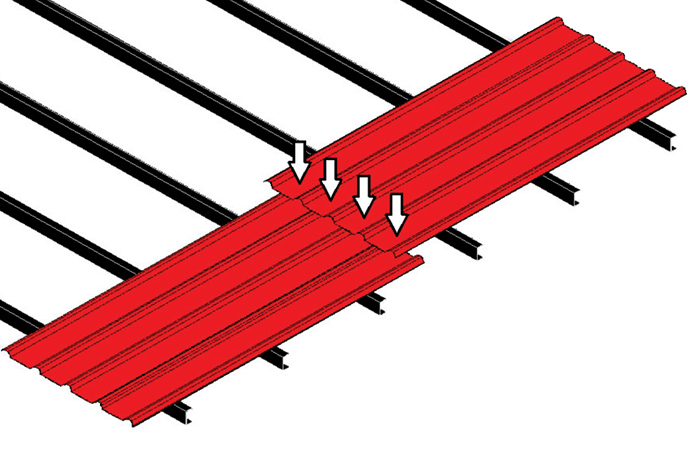

End lap
End laps to be fastened through crest along the purlins. Metal roofing sheet is available in continuous length limited only by the maximum transportable length of 25m. For longer length, end lap is recommended, minimum end lap overlapping should be 200mm-300mm. The lap should be secure fastening and treated with a recommended sealant.
Specifications

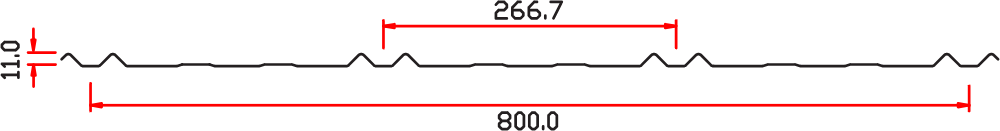

| Rib height | 11 mm ± 1 mm |
|---|---|
| Effective cover | 800 mm |
| Installation | Vertical or horizontal |
| Maximum transportable length | 25 m |
| Tolerance | Material thickness ±0.03 mm; effective width ±5 mm; finishing length ±5 mm |
| Material warranty | Up to 30 years (terms & conditions apply) |
